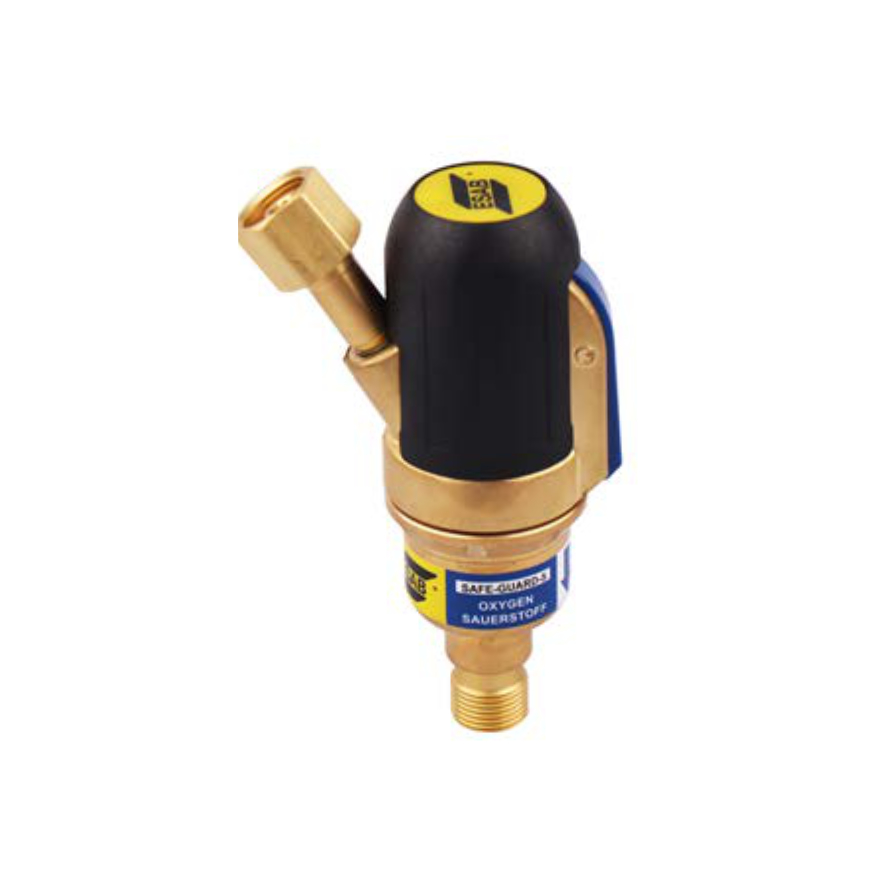

ESAB SG5 Oxy Flashback Arrestor (0764457E)

The latest innovation ESAB SAFE-GUARD-5 offers the maximum level of protection required by ISO 5175-1 to prevent dangerous flashbacks from reaching the regulator and cylinder supply sources. There are many conditions that can cause a flashback, fitting a SG5 flashback arrestor is the highest level of safety

Main Functions

• Flame arresting element FA
• Non return valve NV
• Pressure sensitive cut off valve PV
• Temperature sensitive cut off valve TV
• Reset mechanism to clearly advise unit activation RM

Features

• Maximum number of safety features defined by ISO 5175-1
• High visibility trip/reset lever coupled with quick acting reset even when pressurised
• Angled inlet to minimise hose damage
• 100% production flame tested for Flashback resistance
• Inspection dates can be marked on product for easy reference

Factsheet

ESAB SAFE-GUARD-5 Fact Sheet
