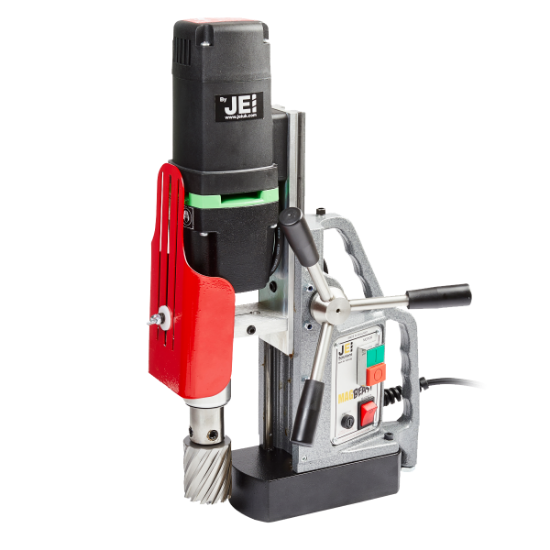

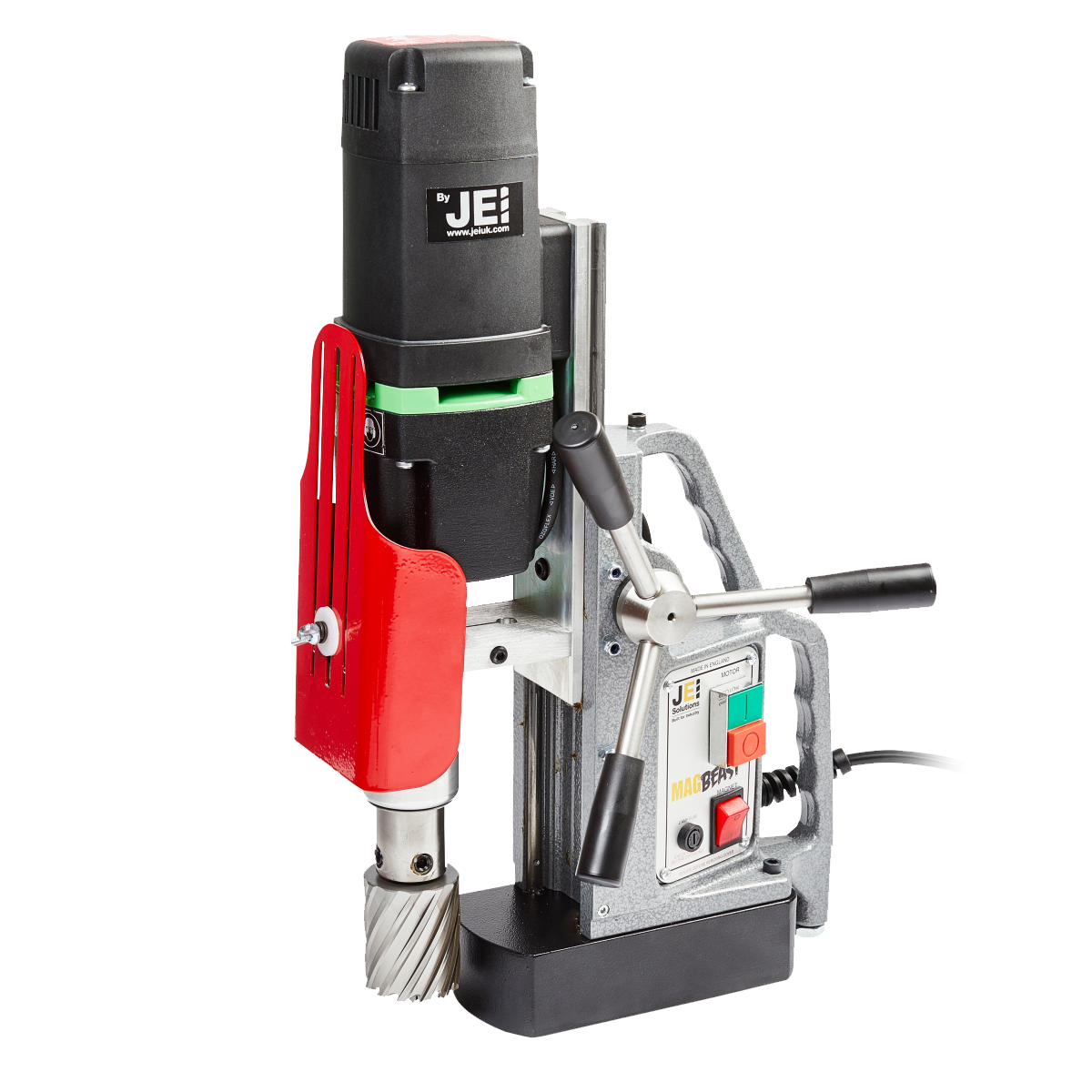

MAGBEAST® HM50 220V

Rely on the expert capabilities of the MagBeast® HM50. Featuring extra long drill travel, ideal for 100 mm long cutters, and a 50mm diameter cutting capacity. Cutter not included.

Brand: JEI

Manufacturer part number: DRILL-HM50/2

JEI MAGBEAST Magnetic Drills

A DURABLE, DEPENDABLE HEAVY DUTY 2 MORSE TAPER DRILLING MACHINE.

RELY ON THE EXPERT CAPABILITIES OF THE MAGBEAST® HM50. FEATURING EXTRA LONG DRILL TRAVEL, IDEAL FOR 100 MM LONG CUTTERS, AND A 50MM DIAMETER CUTTING CAPACITY.

Heavy duty 1150 W motor – enables larger cutting capacity.
Weighs only 14 kg with a 50 mm cutter capacity – unrivalled weight to cutting capacity ratio.
150mm total drill travel – facility to use extra-long cutters.
Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).

MAGBEAST HM50 Drilling Capacity MAGBEAST HM50 Twist Drill Capacity JEI MAGBEAST HM50 Magnetic Drill Countersink Capacity

JEI MAGBEAST HM50 Magnetic Drill - Made in the UK

£1,014.00 incl VAT

increase decrease

Availability Date: 1-3 Days

Overview
Specifications
Reviews
Contact Us

JEI MAGBEAST Magnetic Drills

A DURABLE, DEPENDABLE HEAVY DUTY 2 MORSE TAPER DRILLING MACHINE.

RELY ON THE EXPERT CAPABILITIES OF THE MAGBEAST® HM50. FEATURING EXTRA LONG DRILL TRAVEL, IDEAL FOR 100 MM LONG CUTTERS, AND A 50MM DIAMETER CUTTING CAPACITY.

Heavy duty 1150 W motor – enables larger cutting capacity.
Weighs only 14 kg with a 50 mm cutter capacity – unrivalled weight to cutting capacity ratio.
150mm total drill travel – facility to use extra-long cutters.
Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).

MAGBEAST HM50 Drilling Capacity MAGBEAST HM50 Twist Drill Capacity JEI MAGBEAST HM50 Magnetic Drill Countersink Capacity

JEI MAGBEAST HM50 Magnetic Drill - Made in the UK

Products specifications

Attribute name	Attribute value
Magnetic Drills
Model	MAGBEAST® HM50
Voltage	220 volt
Cutter Capacity	50 mm Ø x 4” depth of cut
Twist Drill Capacity	13 mm with 2MT Chuck / 23 mm with 2MT Twist Drill
Countersink Capacity	40 mm
Reaming Capacity	22 mm (19 mm shank)
Motor	1150 W
RPM	No load 465/720 RPM Loaded 250/450 RPM
Height Min / Max	380 / 560 mm
Length	280 mm
Width	170 mm
Magnetic Base Dimensions	90 x 180 mm
Magnet Deadlift	1250 kg on 1” Plate (12000 N)
Noise Level	< 90dB
Vibration Level	< 2.5 m/s2
Weight	14 kg

Your name *

Your email *

Enquiry *

Products specifications

Attribute name	Attribute value
Magnetic Drills
Model	MAGBEAST® HM50
Voltage	220 volt
Cutter Capacity	50 mm Ø x 4” depth of cut
Twist Drill Capacity	13 mm with 2MT Chuck / 23 mm with 2MT Twist Drill
Countersink Capacity	40 mm
Reaming Capacity	22 mm (19 mm shank)
Motor	1150 W
RPM	No load 465/720 RPM Loaded 250/450 RPM
Height Min / Max	380 / 560 mm
Length	280 mm
Width	170 mm
Magnetic Base Dimensions	90 x 180 mm
Magnet Deadlift	1250 kg on 1” Plate (12000 N)
Noise Level	< 90dB
Vibration Level	< 2.5 m/s2
Weight	14 kg
