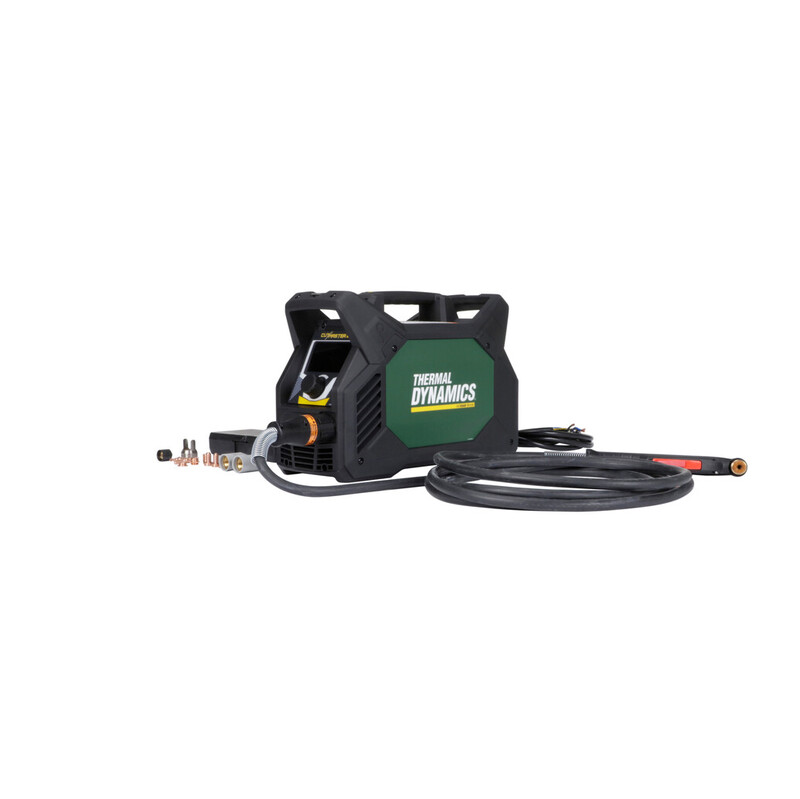

Thermal Dynamics Cutmaster® 70+ Plasma Cutter

Thermal Dynamics Cutmaster 70+ Plasma Cutter is the perfect combination of power and portability for hand-held plasma cutting machines. Plus means more, so we’ve added a user-friendly 10.9 cm (4.3 in.) TFT LCD screen and upgraded features that give you even more control and flexibility to master any pierce and cut up to 19 mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.

Recommended pierce and cut capacity: 19 mm Maximum edge cut capacity: Up to 38 mm (depending on material)

Features

• Portable and durable with three handles and lightweight, industrial all-weather housing
• Bright 10.9 cm (4.3 in.) TFT LCD display with glovefriendly adjustment knob simplifies use and provides greater control and flexibility
• Input 400 V, 3-phase power
• Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
• Switch between normal and grate cutting modes
• Post-cut air purge to expand consumable life
• 50% duty cycle @ 70 A with cutting voltage 150 V, 100% @ 50 A with cutting voltage 150 V
• Cutmaster Black Series consumables included for up to 60% longer life
• Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
• CNC functionality with pre-installed 14 pin CPC receptacle and voltage divider which allows: 1. Start/Stop 2. OK to Move 3. Divided arc voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1

Industry

• Industrial and General Fabrication
• Light Fabrication
• Industrial Production & Manufacturing
• Automotive Bodies
• Hobbyist
• Agricultural Equipment
• HVAC
• Repair and Maintenance
• Pipeline
• Training School

Package Includes

Cutmaster 70+ power supply, SL60 75° torch and lead 5 m, work lead with ground clamp 3 m, consumables kit, regional 1/4” air fitting. Cutmaster 70+ is compatible with all Torch ATC torch connections.

Factsheet

Cutmaster® 70+
